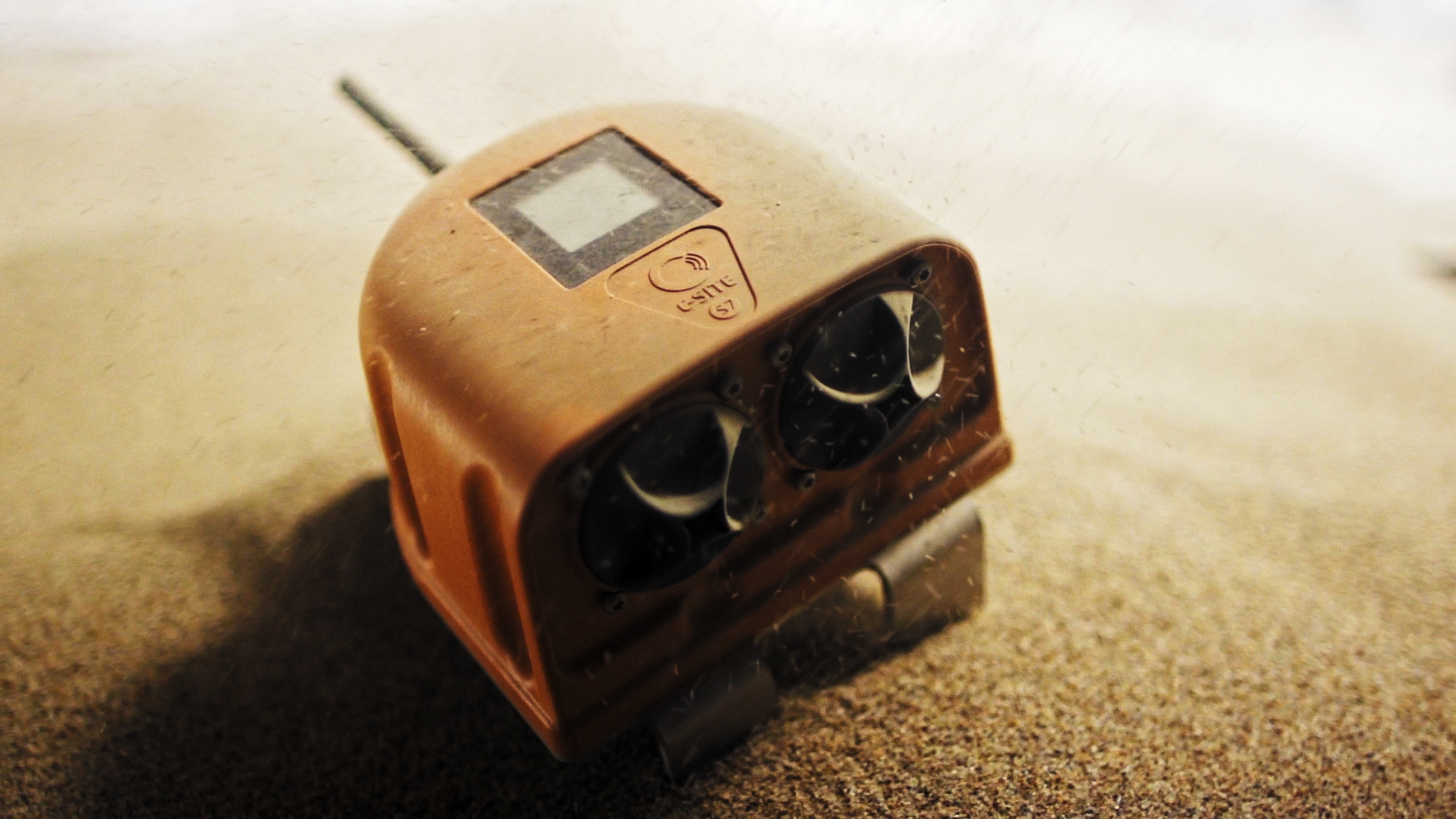

Introducing the Creowave C-Site S7 Sensor Unit

The C-site S7 is a cutting-edge wireless sensor unit designed to revolutionize industrial monitoring and data acquisition.

Engineered for demanding environments, the S7 combines robust performance with seamless connectivity to deliver real-time insights and unparalleled reliability by collecting data from assets and sending it to the R7 unit which then sends the data to the customer specific cloud server and on to the C-site M7 software for more analytics and decision making.

Key features include:

  • Multi-Sensor Capability: Supports various sensor types, including pressure, temperature, and vibration, for comprehensive monitoring.
  • Wireless Connectivity: Operates on LPWAN networks such as LoRa, ensuring secure and efficient data transmission over long distances.
  • Rugged Design: Built to withstand harsh conditions, making it ideal for industries like oil & gas, energy, and heavy manufacturing.
  • Smart Integration: Easily integrates with centralized monitoring platforms for data visualization and advanced analytics.

With the C-site S7, you gain the ability to monitor remote sites, predict maintenance needs, and enhance operational safety – all while reducing costs and improving efficiency.

Take your operations to the next level with the Creowave C-site S7 Sensor Unit – where precision meets innovation.

Specifications

Features

  • Configurable analogue front end to support different types of transducers
  • Adjustable threshold and value alarms
  • Adjustable measurement interval
  • RSSI and LQI diagnostics
  • Long life battery design
  • Battery monitoring
  • Encrypted data transmission
  • Remote configuration via M7
  • Factory set 64-bit identifier
  • Easy to set-up and install to the site

Wireless Specifications

Model: Zigbee

  • Communications protocol: Creowave proprietary
  • Data rate: 250 kbps
  • Frequency: 2400 – 2483.5 MHz license free ISM band
  • RF transmitter power: Factory adjustable +10 – +18dBm
  • Antenna: +2 dBi Omnidirectional monopole type

Model: LoRa

  • Communications protocol: LoRaWAN
  • Data rate: 300 bps – 50 kbps
  • Frequency: 863 – 870 MHz license free Sub-GHz ISM band
  • RF transmitter power: Max. +14 dBm
  • Antenna: +2 dBi Omnidirectional monopole type

Transducer Type Options

Serial interface RS-485

  • Current output: 0-20 mA
  • Voltage output: 0-10 VDC

Temperature sensor 2/3-wire RTD

Status: 0-3 VDC low, 0-10 VDC high

Functional Specifications

  • Update period: 0.5 seconds to several hours
  • Battery pack: Dedicated battery pack
    Rated voltage 3.6V
    Rated capacity 2 x 14 Ah
  • Battery life: 10 years at 5min update interval
  • External power supply: Max 3.9V max

Operating Specifications

  • Enclosure: IP67
  • Ambient temperature: -25…+55 °C/+60 °C/+70 °C (depending on model)
  • Vibration: Tested according to IEC 60068-2-6

Regulatory Compliance Statement

  • Hazardous location certificates: ATEX/IECEx certified to II 1 G Ex ia IIC T4 Ga and II 2G Ex ib IIC T4
  • cMETus certified to: CL 1 ZONE 1 AEx ib IIC T4 Gb (UL, CSA, CAN) listing no. E114294
  • EMC conformity standards: EN61326 Class A
  • R&TTE conformity standards: ETSI EN 300 328 ETSI EN 301 489-17 EN61010-1
  • Regulation conformity of the wireless model: FCC approval, IC approval
